Kaya
Rack Mountain ci gaba
Geya Rack Movie Static Fo Generator shine amintaccen bayani don diyya mai hawa mai hawa. DSP + CPLD, <10Ms amsa, ƙira na zamani, 220v-690v, 5kvar-400kvar. Inganta ingancin iko a aikace-aikace daban-daban.
Geya tana samar da rakumi dutsen mai ci gaba na Statal Carmators (ASVG). Waɗannan asvgs suna ba da diyya mai amfani da wutar lantarki. Wannan yana inganta ingancin iko. Suna amfani da fasahar DSP da CPLD. Wannan yana tabbatar da ingantaccen iko da amsa mai sauri. Lokacin mayar da martani shine karkashin 10m. Wannan yana hana cika abubuwa da kuma rashin ci gaba. Tsarin zamani yana ba da haɗin haɗin gwiwa. Haɗa raka'a da yawa suna kara iya aiki. Geya yana ba da samfuran daban-daban. Model na rufe abubuwa daban-daban da iyawa. Voltages sun hada da 220v, 380v, 500V, da 690v. Karfin gwiwa daga 5kvar zuwa 400kvar. Abubuwan da suka shafi maɓallin sun haɗa da hawa dutsen, an tilasta wa iska sanyaya, da kuma kayan aikin kariya daban-daban.
Bayanin samfurin:
| Ƙwaya | ASVG | 0.4 | 50K | / | 4l | R |
| Lambar Kasuwanci | Static bro na janareta | Matakin lantarki 0.22: 220v 0.4: 380V ± 20% 0.5: 500V ± 20% 0.69: 690V ± 20% |
Daukar ruwa (KVAR) 5/5/5 / 50 / 75KVAR | 2L: Lokaci guda 3L: Uku-Uku-waya-waya 4L: Uku-waya-waya |
R: Rack Dutsen |
Fasali:
● Amfani da DSP + CPLD Dukkanin Corwararren Corcewararru na dijital, Fasaha ta Tsakiya, haɓaka ƙarfin iko don samun biyan diyya mai aiki mai ƙarfi.
● Kultaka ƙirar Modular, wanda ya sauƙaƙe haɗin daidaici na mahara masu yawa, yana ɗaukar ƙananan sarari kuma yana da sauƙin kiyayewa.
Hukumar tsarin da ta dace da iska ta sama da kuma shagunan sayar da kayayyaki masu zaman kansu suna tabbatar da ingantaccen aikin kayan aiki.
● Gudanar da cikakken diyya mai sauri don haɗakarwar mai jujjuyawa mai ƙarfi, kuma yana warware matsalar rashin daidaituwa na gaba ɗaya a lokaci guda.
● Matsakaicin mayar da martani mai tsauri a matakin millisk, wanda zai iya cimma sakamako mai tsauri da ingantaccen diyya don ƙarfin hakkin tasirin sakamako.
Aikace-aikace:
Rack titin ci gaba Statical vara janaretoci yana da aikace-aikace daban-daban. Sun dace da masana'antu daban-daban. Waɗannan sun haɗa da:
● Rarrabawar Gidaje
● Aikin Water
● Mai sabunta makamashi (Photovoltaic)
● Chemismer aiki
● OM da gas
● Metallgy
● Mining
● masana'antu mota
Wadannan asvs suna inganta ingancin iko. Suna rama don hawa hawa hawainiya. Wannan yana inganta tsarin kwanciyar hankali da inganci.
Sigogi na fasaha:
| 220v jerin | 380v jerin | Tsarin 500V | 690v jerin | |||
| Tsawo | <2000m, sama da 2000m, yiwa birgima bisa ga GB / T3859.2 | |||||
| Na yanayi | -20 ~ + 50 ℃ | |||||
| Zafi zafi | ≤90%, babu lakka a farfajiya lokacin da zafin jiki mafi ƙarancin watanni 25 ℃ | |||||
| Matakin gurbataccen | Level III a ƙasa | |||||
| Aiki na wutar lantarki | AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | AC690V ± 20% | ||
| Mitar aiki | 50Hz ± 5% | |||||
| Kudin rudani | 5kvar | 15/35/50 = 75kvar | 90kvar | 120KVAR | ||
| Tsarin grid | L / n | 3P3W / 3P4W | ||||
| Yawan raka'a da aka haɗa a cikin layi daya | Melied | |||||
| Gaba daya ingancin injin | ≥97% | |||||
| On-kashe mita | 32KHz | 16KHz | 12.8KHz | 12.8KHz | ||
| Tsarin aiki | Mai ba da aiki | Maimaita PO Wer, Maimaita PO Wer + rashin daidaituwa | ||||
| Yawan biyan ikon biyan kuɗi | ≥99% | > 95% | ||||
| Cikakken lokacin martani | <10ms | |||||
| Amo | ≤60db | ≤60db | ≤65db | ≤65db | ||
| Hanyar sarrafawa | 2-Wanna Rs485 Interface (Yana tallafawa GPRS / WIFI) | |||||
| Karewa | Aiwatarwa, software / kayan kwalliya overcurrent, Grid overvoltage, Grid overvoltage, gazawar wuta, gazawar ciki kariya, da sauransu. | Aiwatarwa, software / kayan kwalliya overcurrent, Grid overvoltage, Grid Overvolance, Grid Valbicalate, Clid Volartage rashin daidaituwa, kariyar wutar lantarki, kariyar al'ada, da sauransu. | ||||
| Hanyar shigarwa | Rack / bango | Rack | ||||
| Layin shigowa | A mayar da shigowa (nau'in rack), mai shigowa mai shigowa (bango-hawa) | Dawo mai shigowa | ||||
| Matakin kariya | IP20 | |||||

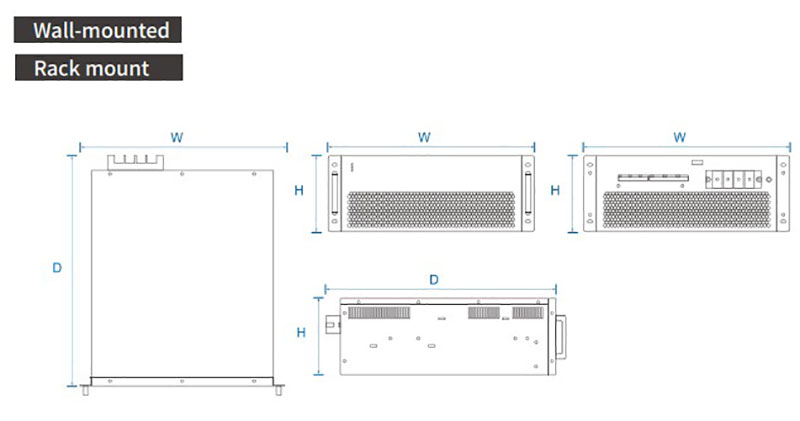

Model & Karkacewa:
| Samfuri | ||||
|---|---|---|---|---|
| Lambar samfurin | Ikon biyan kuɗi (KVAR) | Tsarin dabbobi (v) | Girma (D * W * H) | Hanyar sanyaya |
| Gy asvg-0.22-5k / 2l-r / w | 5 | 220 | 220 * 330 * 160mm | Age iska |
| Gy asvg-0.4-15k / 4l-r / w | 15 | 380 ± 20% | 460 * 520 * 89mm | |
| Gy asvg-0.4-35k / 4l-r / w | 35 | 380 ± 20% | 460 * 520 * 89mm | |
| Gy asvg-0.4-50k / 4l-r / w | 50 | 380 ± 20% | 500 * 540 * 190mm | |
| Gy asvg-0.4-75k / 4l-r / w | 75 | 380 ± 20% | 500 * 580 * 240mm | |
| Gy asvg-0.4-100k / 4l-r / w | 100 | 380 ± 20% | 500 * 580 * 240mm | |
| Gy asvg-0.5-90k / 4l-r / w | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy asvg-0.69-120k / 4l-r / w | 120 | 690 ± 20% | 495 * 675 * 275mm | |
